Newly designed full replacement bell housing conversion setup fits LS series V8 engines into a GU Nissan Patrol. This custom made bell housing is engineered and manufactured exclusively by Mark’s 4WD Adaptors.

The bell housing kit consists of a full replacement bell housing which couples the engine to the original 5-speed manual transmission. The bell housing spaces the new engine away from the irregular shape of the Nissan Patrol firewall. No firewall modifications or re-positioning of the transfer case is required. The bell housing is designed to allow the right-hand exhaust to cross under and give as much clearance as possible.
We supply an input shaft extension that fits over the original Nissan gearbox input shaft. This shaft allows us to change to the 26 tooth GM spline, allowing us to use a GM style clutch with a much higher clamping ability than the Nissan clutch.
The heavy-duty billet flywheel has been designed for 4wd applications. It is 10mm thicker than the factory LS flywheel, which is prone to cracking. The greater weight also helps the engine maintain momentum at low revs when 4WDing. The clutch is a heavy-duty Exedy cover and organic plate with a massive 1250kg of clamp load – this clutch will suit all N/A (naturally aspirated) engines.
The kit includes a new clutch master cylinder and self-adjusting concentric slave cylinder, which is matched perfectly to the clutch. Once the bell housing/clutch/flywheel setup is installed, you will have a very smooth and even feeling clutch, but with loads of clamping pressure to handle all N/A engines.
The engine mount rubbers in this kit are a brand new item that has been designed and manufactured in Australia specifically for this engine conversion. The block brackets will bolt up to the block, and the new engine mounts will fit up to these and bolt to the factory TB/TD chassis posts.. All the required nuts, bolts and washers are supplied.
The LS engine accessories (alternator & air conditioning) will require modification due to the position of the Patrol chassis rails. We can supply these modified accessory mounts.

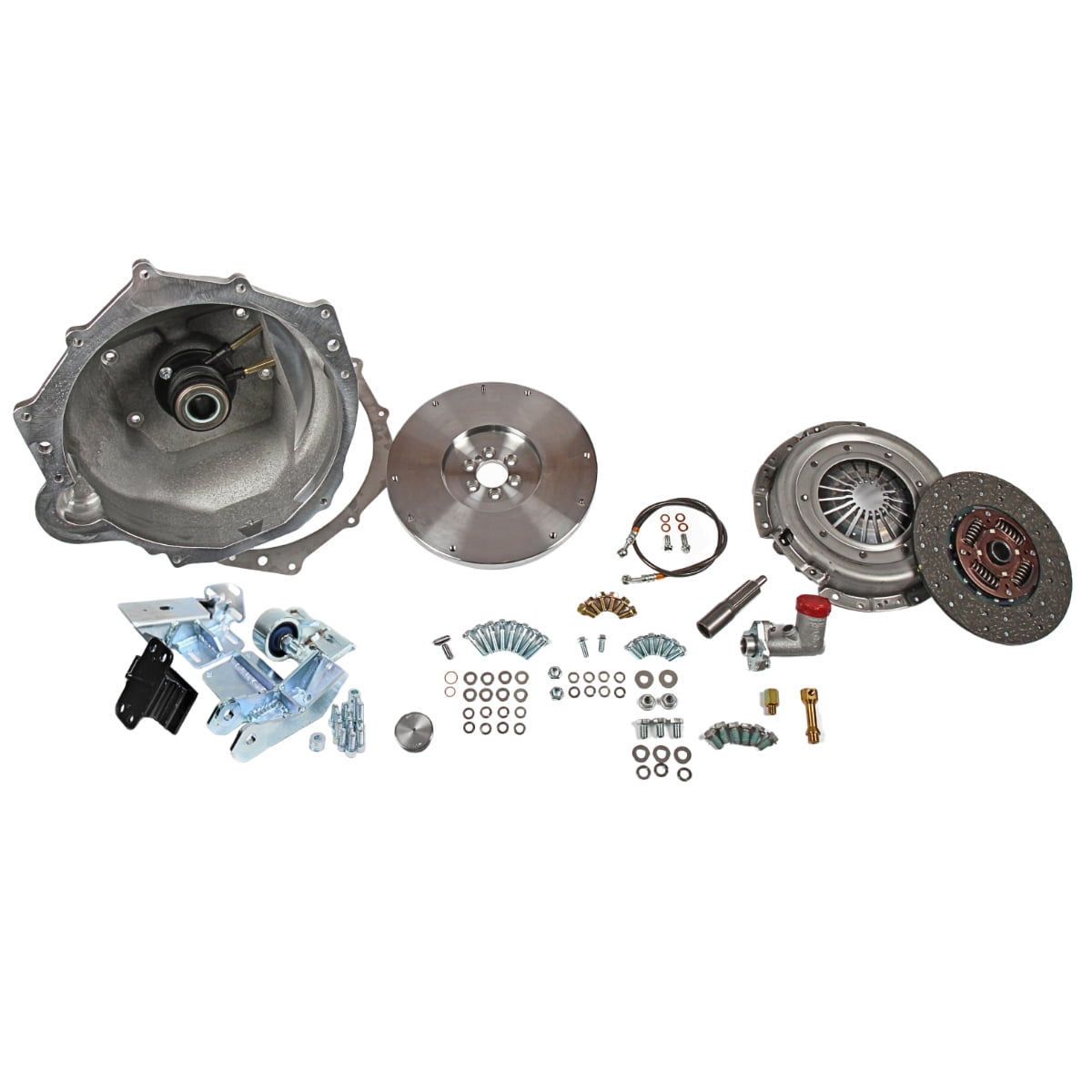

Kit Includes
Full replacement bell housing – pre-assembled with the internal concentric slave cylinder
Input shaft extension
Spigot bearing
Cover plate
Genuine Nissan gearbox input shaft seal
Oil pressure and water temp sender adaptors
Heavy-duty billet steel flywheel
Heavy-duty Exedy clutch kit – 1250kg clamp load
Clutch master cylinder and braided clutch line
ARP flywheel crank bolts
Alignment tool
Fixing hardware
Heavy-duty Australian Made engine mounts
Bolt in engine mounts for TB45, TB48, TD42
Nuts, bolts, washers
